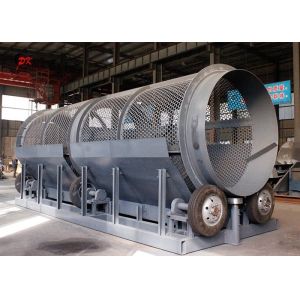

10m Length Horizontal Compost Trommel Screen Rotating Drum Sieve With Seal Cover
Introduction
Trommel screen has wide range of sizes and capacities,it is a mechanical screening machine used to separate materials.It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Trommel screen is a classification machine for various kinds of materials, for example: compost, agriculture waste recycling, soil, coal, river sand, ore, refractory materials, grape pomace, waste etc.
applications:
Trommel screen separator can screen the following materials: black earth, compost, organic waste, green waste, wood waste (bark, sawdust, wood-chips etc), domestic refuse, municipal waste, recycled asphalt, concrete, slag coal, sand, gravel, clay, alluvial gold sand and many other materials.
Technical Parameters
| Model | Length (m) | Screen Deck/Layer No. | Aperture Size (mm) | Power (kW) | Inclined Angle (degree) | Max. Material Size (mm) | Rotating Speed (r/min) |
| WGTS900 | 2-5 | 1-3 | 5-40 | 3-5.5 | 0-7 | 60 | 15-18 |
| WGTS1000 | 2-6 | 1-4 | 5-50 | 4-7.5 | 0-7 | 80 | 15-18 |
| WGTS1200 | 3-8 | 1-4 | 5-60 | 5.5-11 | 0-7 | 100 | 15-18 |
| WGTS1500 | 3-10 | 1-5 | 5-60 | 7.5-22 | 0 | 150 | 15-18 |
| WGTS1800 | 3-10 | 1-5 | 5-60 | 7.5-30 | 0 | 150 | 15-18 |
| WGTS2000 | 4-10 | 1-5 | 5-75 | 7.5-37 | 0 | 180 | 15-18 |
Note: the parameter above is just for reference,it can be customized by different requirment.
Selection Conditions
| ♦ Material to be processed: | ♦ Screen deck/segment number: |
| ♦ Bulk density: t/m3 | ♦ Mesh size of every screen deck/segment: mm |
| ♦ Material Temperature: ºC | ♦ Upstream equipment (what kind of equipment is used to feed the material): |
| ♦ Water Content: % | ♦ Downstream equipment (what kind of equipment is used to discharge the material): |
| ♦ Material is corrosive or not: (Yes or No) | ♦ Drive: (Domestic or International brand or designated brand?) |
| ♦ Material is sticky or not: (Yes or No) | ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements) |
| ♦ Granule size of material: mm | ♦ Working environment: (indoor or outdoor) |
| ♦ Max. granule size: mm | ♦ Working environment temperature: °C |
| ♦ Particle distribution percentage: | ♦ Working power supply: 3 Phase V Hz |
| ♦ Handling capacity: t/h | ♦ Quantity: sets |
